| 介質 空氣 最大使用壓力： | DN | 145 PSI | 10 bar | |
| 介質 液壓油 最大使用壓力： | 3000 PSI | 207 bar | ||
| 最大真空度： | 28" Hg | |||
| 最高使用速度（轉子）： | ||||
| DN | 250 RPM | 250 min-1 | ||
| 最高使用溫度： | 120℃ | ＞120℃ 請咨詢創啟旋轉接頭 | ||

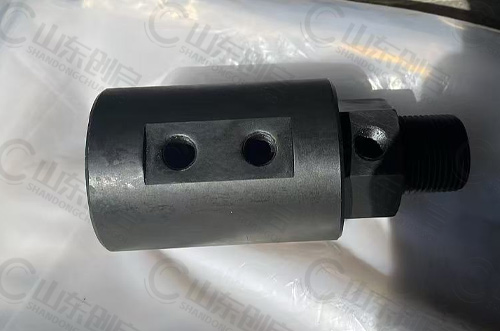

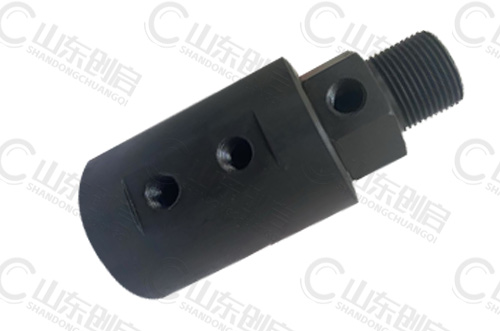

| 1790型兩通路液壓旋轉接頭 - 雙通路 - 螺紋連接 | ||||||||||||||||

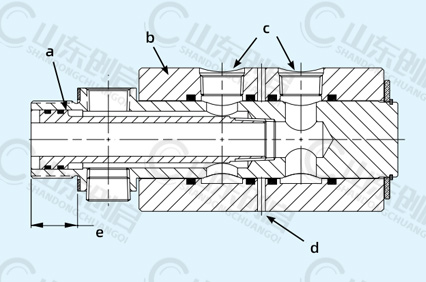

| Model | B Port NPT | A Rotor Thread | C Dia. | D | E | F | G Rotor ID | H** Across Flats | I Tap NPT | J Lock-up | K Tap NPT | N | P | R | S | Shpg Wt. |
| 1790-001-113 | (2)x1?2" | 1-1?4" NPT RH | 3" | 8-3?16" | 2-15?32" | 1-1?8" | 5?8" | 50.8 | 1?2" | 3-3?4" | 1?2" | 1-21?32" | 2-5?8" | 5?8" | – | 6-1?2# |
| 1790-001-101* | (2)x1?2" | 1-1?4" NPT RH | 3" | 8-3?16" | 2-15?32" | 1-1?8" | 1-1?16" | 50.8 | 1?2" | 3-3?4" | 1?2" | 1-21?32" | 2-5?8" | 5?8" | 5-1?16" | 6-1?2# |
| 1790-001-114 | (2)x1?2" | G1-1?4" (BSP) RH | 76 | 208 | 63 | 28 | 16 | 50.8 | 1?2" | 84.2 | 1?2" | 42 | 67 | 15.5 | – | 3 Kg |
| 1790-001-112* | (2)x1?2" | G1-1?4" (BSP) RH | 76 | 208 | 63 | 28 | 27 | 50.8 | 1?2" | 84.2 | 1?2" | 42 | 67 | 15.5 | 129 | 3 Kg |
